Automatic Fine Wire Bonder – Wedge and Ball

HB100

Product Description

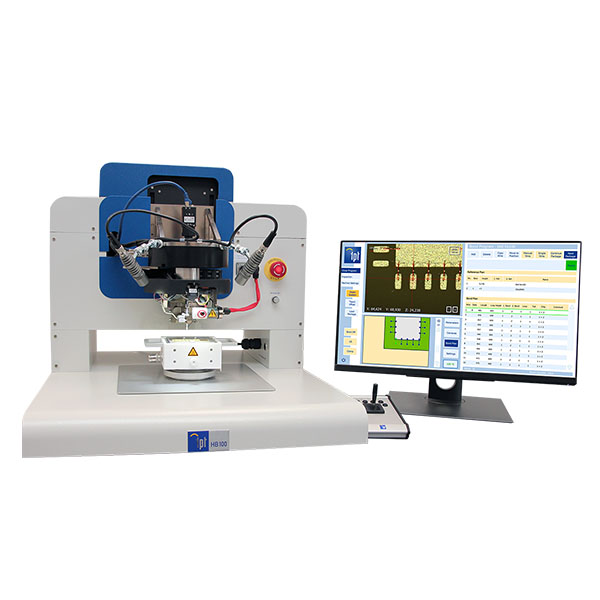

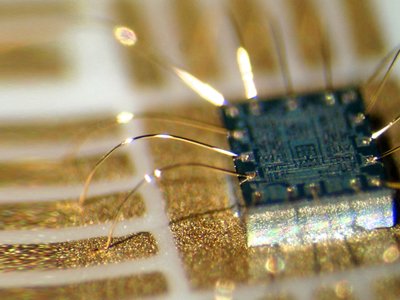

The HB100 represents a new generation of automatic desktop wire bonder with motorised Z-X-Y axis and bondhead rotation. Perfectly suited for laboratories and small volume productions. This versatile machine can perform wedge and ball bonding with a single bond head. With fast, precise linear motor axis, the HB100 is very easy to use and packed with exciting features such as a touch-screen, dual camera system and joystick control. In addition, the latest software technology supports the user with process guidance and bond assist features.

Key Features

  • Motorized X, Y, Z and Theta axis
  • Loop Profile Software with up to 10 steps
  • Pattern Recognition – automatic position correction through machine vision (optional)
  • Intuitive 21″ Interface with Touch Screen Control
  • Simple change between Ball and Wedge Bonding
  • Deep Access Bondhead
  • Dual Camera System for Detail view and Overview at the same time
  • Crash Prevention System for Z-Axis Touch Down
  • Parameters Entered using Real Units of Force, Time and Power
  • Broad range of Accessories like Heater stages and Top Plates

Technical Specification

  • Gold & Aluminium Wire Diameter 17-75µm (0.7 – 3 mil)
  • Ribbon Size up to 25×250µm (1×8 mil)
  • X-Y Drive & Resolution linear motors 0.1µm
  • 63.3kHz Transducer PLL Control (110kHz option)
  • Ultrasonic Power 0-10 Watt Output
  • Bond Time 0-5 seconds
  • Bond Force 10-200cNm
  • 90° Wire Feed Angle
  • 100mm Motorized Z travel
