Single Magazine PCB Unloader

SUL-460LS-E

Product Description

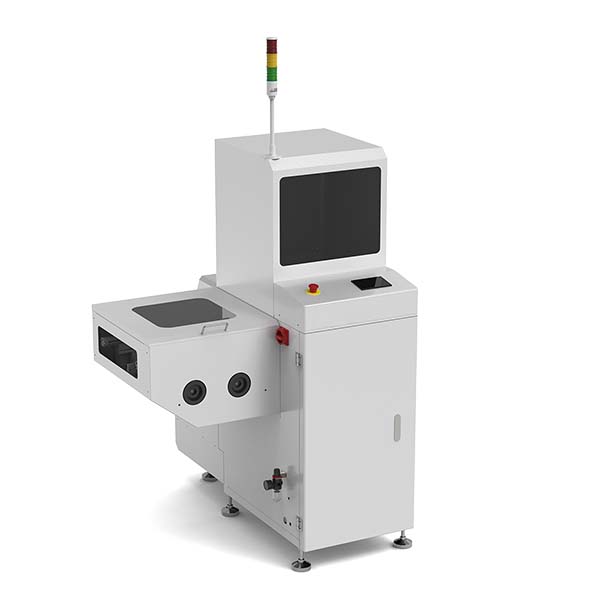

The single automatic unloader is designed for unloading PCBs. When a PCB arrives, it is taken up by the attached conveyor and then pushed into the magazine using a specially designed pusher. The magazine then indexes to the next position, making it ready for the next unloading cycle.

Key Features

  • Mitsubishi PLC program control
  • Selectable pitch settings
  • Tower light displays current machine status.
  • Flexible platform to suit standard magazines
  • Exchangeable magazine from the rear of the magazine
  • Stepper motorized type pusher to enhance working stability
  • Pusher position adjustable to Center for the boards
  • User-friendly touch screen panel
  • Magazines are automatically motor driven on infeed and outfeed
  • SMEMA compatible

Technical Specification

  • Transfer heights: 900mm+/-50mm
  • Transfer direction: Left to right
  • Operation side: Front of machine
  • Fixed rail: Front of machine
  • Magazine change over time: 30s ( optional: 15s)
  • Interface: SMEMA
  • Conveyor belts: ESD flat belt
  • PCB edge support: 4mm
  • Allowable components clearance: Top 50 mm+ below 25mm
  • Magazine capacity: Singe magazine
  • Safety: CE certificates
  • Control: PLC
  • Voltage: 220V/ 110V, single phase, 50-60Hz
  • Model – Max. PCB (L*W) mm: SUL-250MS-E – 330*250 / SUL-330LS-E – 440*330 / SUL-390LS-E – 530*390 / SUL-460LS-E – 535*460
