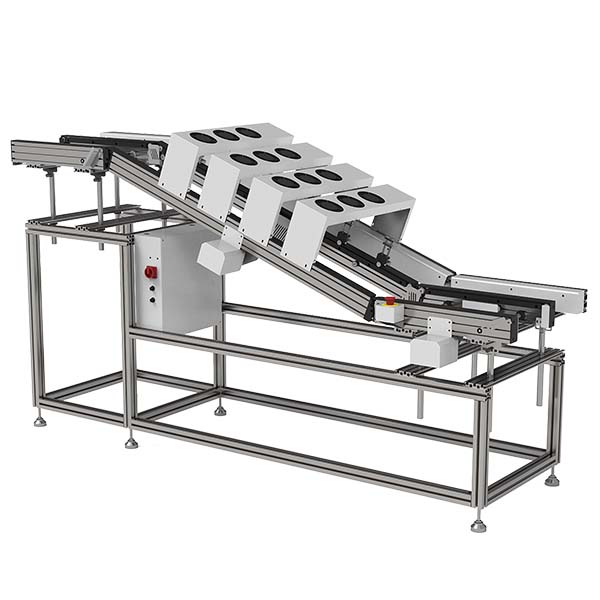

Unloading Conveyor for Wave Soldering for PCB


Product Description

This unit is special for the unloading of PCB from the wave soldering machine. The transfer heights are adjustable to meet any kind of wave solder in the market.

Key Features

  • Mitsubishi PLC program control
  • Continuous queue unloading PCBs from the wave soldering machine.
  • Conveyor width adjustment by using hand crank.
  • PCB transfer angle is adjustable.
  • Heavy bottom design to prevent shifting.
  • Conveyor transfer by ESD flat belts.
  • PCB flow direction flows can be customized.
  • SMEMA compatible
  • Optional: Cooling fan, Conveyor length with 2.5m, Chain conveyor rail

Technical Specification

  • Transfer heights: 900mm+/-50mm
  • Transfer direction: Left to right
  • Operation side: Front of machine
  • Fixed rail: Front of machine
  • Interface: SMEMA
  • Conveyor belts: ESD flat belt
  • PCB edge support: 30mm (or customized)
  • Allowable components clearance: 30mm below and above
  • Safety: CE certificates
  • Control: PLC
  • Voltage: 220V/110V, single phase, 50-60Hz
