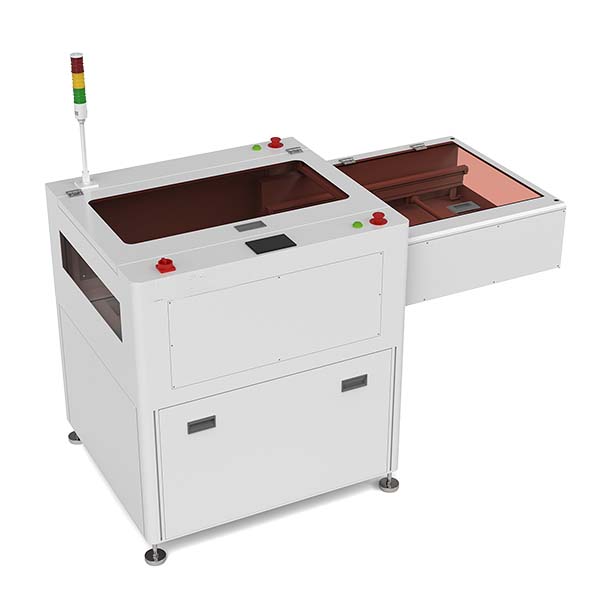

Telescopic Gate PCB Conveyor

TG-460

Product Description

This unit is employed when a passage is needed in a production line. It provides a ‘normal open’ passage within a PCB assembly line. An integrated conveyor segment slides across the opening to deliver PCBs to downstream machines.

Key Features

  • Mitsubishi PLC program control
  • Maximum 600mm passage distance
  • Buzzer
  • SMEMA compatible
  • Fully enclosed design.
  • Conveyor is normally opened until PCB is requested downstream
  • Electrically driven for smooth extension and retraction.
  • Smooth and parallel width adjustment (lead screw)
  • Optional: Motorized conveyor width adjustment, Automatically conveyor width adjustment, R485 communication

Technical Specification

  • Transfer heights: 900mm+/-50mm
  • Transfer direction: Left to right
  • Operation side: Front of machine
  • Fixed rail: Front of machine
  • Interface: SMEMA
  • Conveyor belts: ESD flat belt
  • PCB edge support: 3mm
  • Allowable components clearance: Top 50 mm+ below 25mm
  • Passage distance: 600mm
  • Air supply: 4-6 bar
  • Safety: CE certificates
  • Control: PLC
  • Voltage: 220V/110V, single phase, 50-60Hz
  • Maximum PCB: 500mm (L) x 460mm (W)
