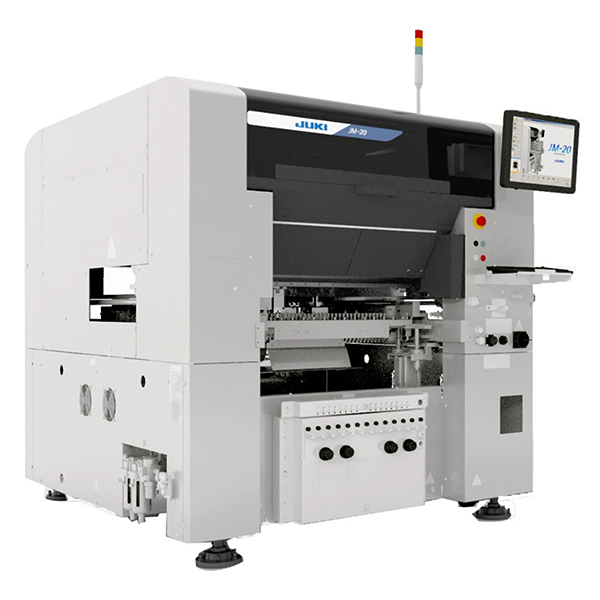

Odd-Form Component Insertion Machine
JM-20
Product Description
The JUKI JM-20 is an automatic odd-form component insertion machine designed for large PCBs and components with non-standard shapes. It supports the insertion of large connectors, capacitors and other irregular components that are difficult to handle using conventional insertion equipment. Its flexible component handling and recognition capabilities help manufacturers automate complex assembly processes and reduce manual operations.
Key Features
- Automatic insertion of large and odd-form electronic components.
- Supports large PCB assemblies up to 800 × 560 mm.
- Handles components up to 55 mm in height.
- Suitable for DIMM, PCI and other large connectors.
- Supports large capacitors, transformers and irregular components.
- Flexible nozzle options for different component shapes.
- Laser recognition for precise component positioning.
- Multiple feeding solutions for different component formats.
- Designed for variable production requirements.
- Reduces manual handling of difficult-to-insert components.
Technical Specification
- Maximum component size: 50 × 50 mm with laser recognition; larger sizes supported with vision recognition, depending on configuration.
- Maximum component height: 55 mm.
- PCB size, single clamping: 50 × 50 to 410 × 560 mm.
- PCB size, double clamping: 50 × 50 to 800 × 560 mm.
- PCB weight: Up to 4 kg.
- Placement accuracy: ±0.02 mm (3σ), laser recognition; ±0.03 mm, vision recognition.
- Component recognition: Laser and vision.
- Component feeding: Tape, stick, tray, radial, axial and bulk feeder options.
- Power supply: 3-phase AC 200–415 V.
- Machine dimensions (W × D × H): 1,500 × 1,892 × 1,550 mm (L-type configuration).
