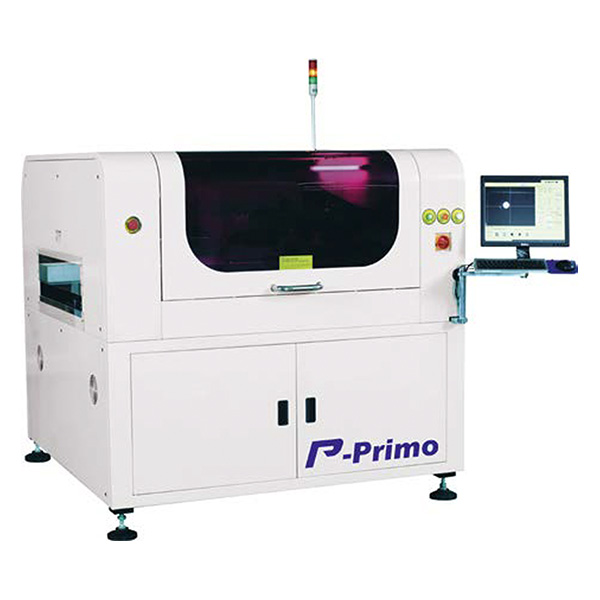

Mid-Size SMT Screen Printer
JUKI P-PRIMO
Product Description
The JUKI P-PRIMO is a mid-size SMT screen printer designed for larger PCB formats and high-volume electronics production. Supporting boards up to 850 × 610 mm, it combines automatic board handling, stable clamping and integrated process functions to provide repeatable solder paste printing while maintaining flexibility across different PCB sizes and production requirements.
Key Features
- Supports PCBs up to 850 × 610 mm.
- Printing accuracy of ±25 µm.
- Designed for mid-size and higher-volume production.
- Automatic PCB width and thickness adjustment.
- Adjustable clamping pressure.
- Retractable top clamp for thin and warped PCBs.
- Integrated 2D solder paste inspection.
- Automatic stencil underside cleaning.
- Two independently controlled squeegee heads.
- Supports traceability, stencil inspection and closed-loop SPI options.
Technical Specification
- PCB size: 100 × 65 to 850 × 610 mm.
- PCB thickness: 0.4 to 8 mm.
- Maximum PCB weight: 5 kg.
- PCB margin: 3.5 mm.
- Stencil frame size: 737 × 737 to 1,100 × 850 mm.
- Stencil frame thickness: 12 to 43 mm.
- Number of squeegee heads: 2.
- Squeegee contact pressure: 0–10 kg.
- Print speed: 10–200 mm/s.
- Print accuracy: ±25 µm.
- Cycle time: < 9.5 s, excluding printing and cleaning.
- Machine dimensions (L × W × H): 1,340 × 1,697 × 1,477 mm.
- Machine weight: 1,200 kg.
- Power supply: 220 V ±10%, 50/60 Hz AC.
- Compressed air: 6 bar. Juki Screen Printing Overview
