Large Format SMT Screen Printer
JUKI PMAXII
Product Description

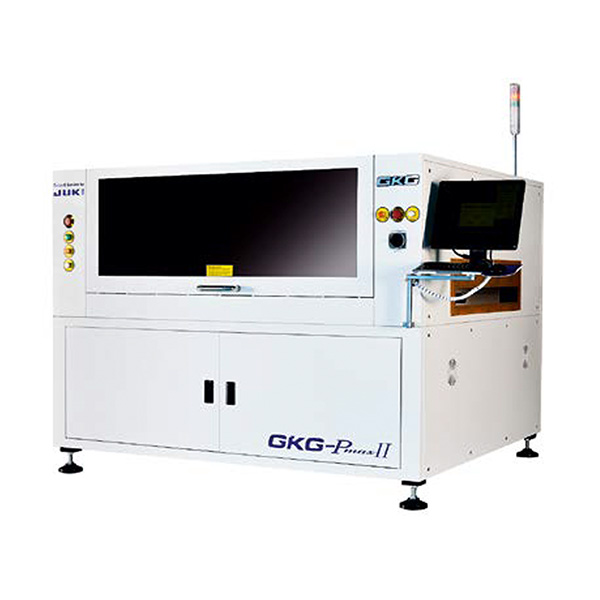

The JUKI PMAXII is a large-format SMT screen printer designed for oversized PCBs and long-board production. Supporting boards up to 1,220 × 800 mm, it provides stable solder paste printing for applications such as large electronic assemblies and LED boards. Its robust construction, automatic board handling and integrated process functions support consistent printing across demanding production environments.
Key Features
- Supports large PCBs up to 1,220 × 800 mm.
- Designed for large-format and long-board production.
- Printing accuracy of ±25 µm.
- Handles PCB weights up to 10 kg.
- Automatic PCB width and thickness adjustment.
- Adjustable side and top clamping.
- Integrated 2D solder paste inspection.
- Automatic stencil underside cleaning.
- High-capacity squeegee system for large print areas.
- Compatible with stencil inspection, paste dispensing and closed-loop SPI options.
Technical Specification
- PCB size: 100 × 65 to 1,220 × 800 mm.
- PCB thickness: 0.4 to 10 mm.
- Maximum PCB weight: 10 kg.
- PCB margin: 5 mm.
- Stencil frame size: 737 × 737 to 1,500 × 1,250 mm.
- Stencil frame thickness: 12 to 43 mm.
- Number of squeegee heads: 2.
- Squeegee contact pressure: 0–30 kg.
- Print speed: 5–150 mm/s.
- Print accuracy: ±25 µm.
- Cycle time: < 25 s, excluding printing and cleaning.
- Machine dimensions (L × W × H): 2,020 × 1,740 × 1,528 mm.
- Machine weight: 1,800 kg.
- Power supply: 220 V ±10%, 50/60 Hz AC.
- Compressed air: 6 bar. Juki Screen Printing Overview
