Flexible SMT Pick and Place Machine

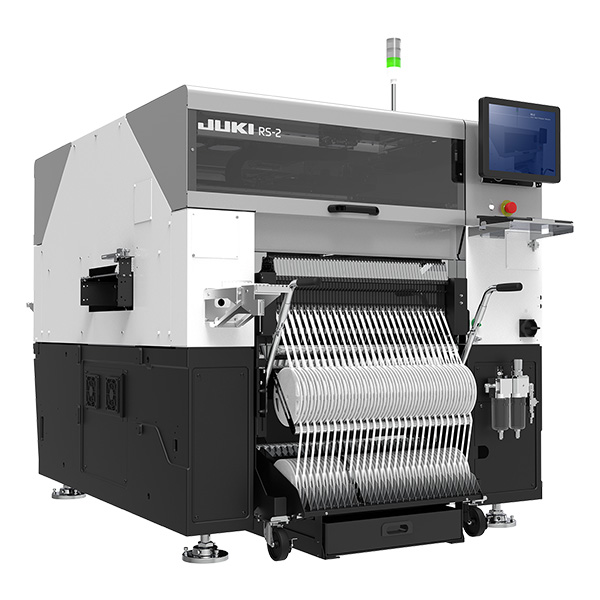

JUKI RS-2
Product Description
The JUKI RS-2 is a flexible SMT pick and place machine designed for mixed-production environments and a wide range of PCB assembly applications. Its 8-nozzle Takumi head combines high-speed placement with adaptive laser recognition, allowing the system to handle components from very small chip devices to larger and more complex packages within a single platform.
Key Features
- Up to 50,000 CPH optimum placement speed.
- 8-nozzle Takumi placement head.
- Adaptive laser sensor height for different component profiles.
- Supports components from 03015 to 74 mm square.
- Handles components up to 50 × 150 mm.
- Supports component heights up to 25 mm.
- Up to 112 feeder positions.
- Laser recognition for fast and accurate component centring.
- Image recognition for QFP, BGA and complex components.
- Available in standard and XL versions for long PCB production.
Technical Specification
- Minimum board size: 50 × 50 mm.
- Standard board size, single clamping: Up to 410 × 370 mm.
- Standard board size, double clamping: Up to 800 × 370 mm.
- XL board size, single clamping: Up to 650 × 560 mm.
- XL board size, double clamping: Up to 1,200 × 560 mm.
- Maximum board weight: 3 kg standard / 10 kg XL.
- Board thickness: 0.3–6.0 mm standard / 0.8–6.0 mm XL.
- Maximum component height: 25 mm.
- Component size: 03015 to 50 × 150 mm, up to 74 mm square.
- Placement speed: 50,000 CPH optimum.
- IPC9850 placement speed: 32,000 CPH.
- Placement accuracy: ±35 μm.
- Feeder capacity: Up to 112 feeder positions.
- Power supply: 3-phase AC 200 V standard; 200–415 V with transformer.
- Operating air pressure: 0.5 ± 0.05 MPa.
- Air consumption: 200 L/min with vacuum generator / 50 L/min with optional vacuum pump.
- Machine dimensions:
- Standard: 1,500 × 1,686 × 1,450 mm.
- XL: 2,109 × 1,876 × 1,450 mm.
- Machine weight: Approximately 1,630 kg standard / 1,850 kg XL. RS-2_XL
