Compact X-ray system

Cougar Evo

Product Description

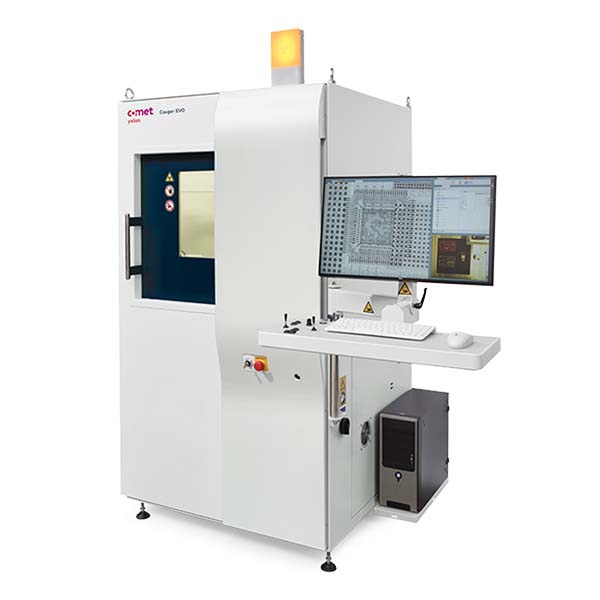

The Cougar EVO is a compact and efficient X-ray inspection system designed for the smart factory. It is particularly suitable for the SMT and Semiconductor industry as well as laboratories, offering reliable, fast, and repeatable inspections both manually and automatically. Its small footprint, occupying only one square meter, makes it an ideal choice for space-constrained environments.

Key Features

  • Compact Design: The smallest footprint available on the market, perfect for space-limited facilities.

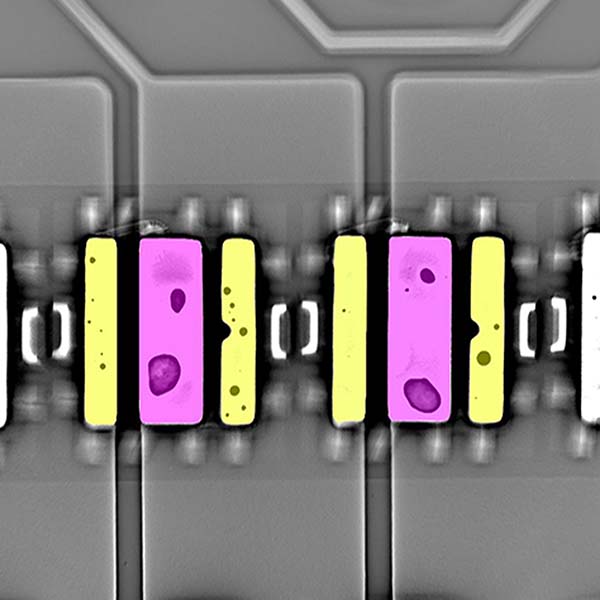

  • Advanced Inspection Capabilities: Features automatic void calculation with VoidInspect, dynamic enhancing filters like eHDR, and the best available laminography with micro3Dslice and FF CT software.
  • Sensitive Component Inspection: Equipped with a dose reduction kit and low dose detector mode, ideal for inspecting sensitive components.
  • Industry 4.0 Ready: Future-proof design to meet the demands of smart factories, with improved automated inspections and connectivity.
  • Optimized Automated X-ray and CT Quality Inspections: Integrated workflows in the FGUI operating software and automatic start with Comet Yxlon FF CT software for faster reconstruction and visualization.

Technical Specification

  • Sample Size: Can accommodate samples up to 440 x 550 mm (17” x 21”).
  • Max. Radioscopic Area: 310 x 310 mm (12” x 12”).
  • System Dimensions: Measures 1000 x 1050 x 2200 mm.
  • System Weight: Approximately 1450 kg.
  • X-ray Tube Options: FXT-160.50 Microfocus or FXT-160.51 Multifocus, with a voltage range of 20 – 160 kV.
  • Detector Specifications: Pixel matrices of 1004 x 620 px, 1004 x 1004 px, and 1276 x 1276 px, with a pixel pitch of 127 µm and 16-bit depth.
  • Oblique Viewing: +/- 70° (140° total).

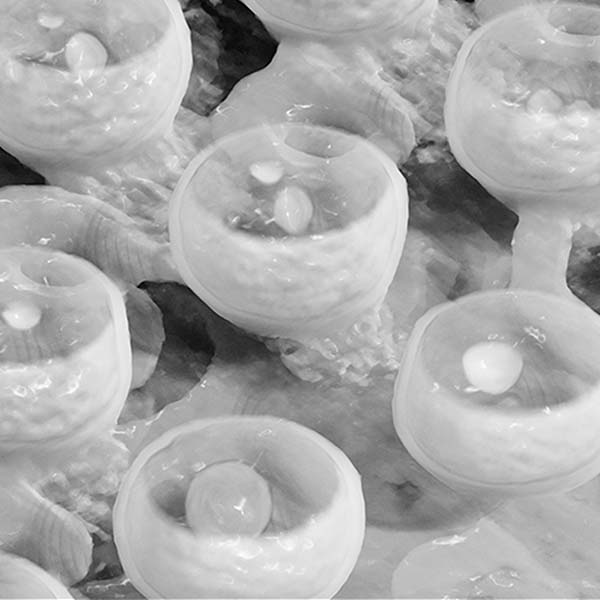

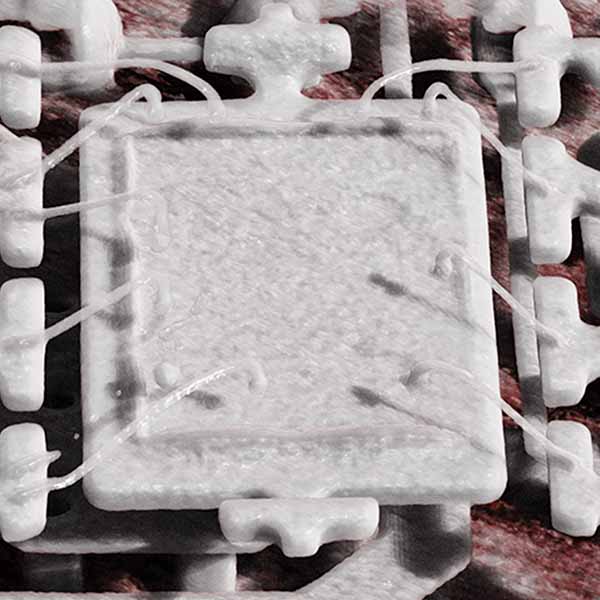

  • 3D Imaging Modes: Includes laminography (micro3Dslice), CT QuickScan, and QualityScan.
