Automatic SMT Screen Printer

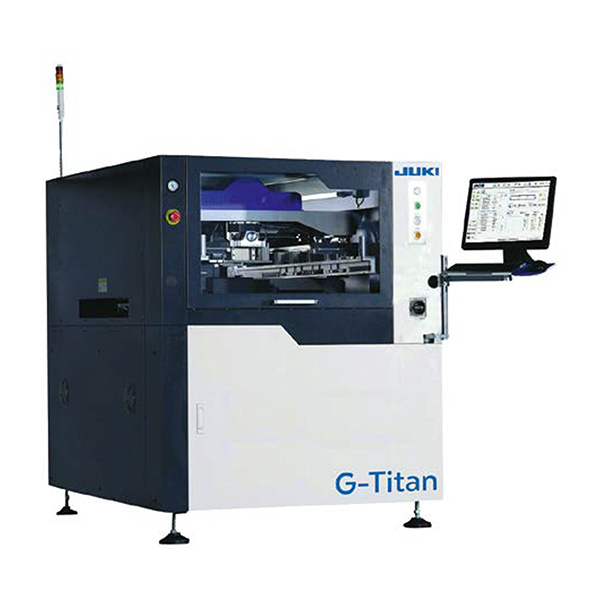

JUKI G-TITAN
Product Description
The JUKI G-TITAN is an automatic SMT screen printer designed for accurate solder paste printing on standard PCB formats. With a maximum board size of 510 × 510 mm and printing accuracy of ±18 µm, it combines stable mechanical construction, automatic board handling and integrated process control for reliable, repeatable printing in electronics assembly.
Key Features
- Printing accuracy of ±18 µm.
- Supports PCBs up to 510 × 510 mm.
- Automatic PCB width and thickness adjustment.
- Adjustable side clamping for secure PCB positioning.
- Retractable top clamp for thin or warped boards.
- Integrated 2D solder paste inspection.
- Automatic stencil underside cleaning.
- Two independently adjustable squeegee heads.
- Windows-based operator interface for programming and setup.
- Compatible with traceability and closed-loop SPI options.
Technical Specification
- PCB size: 50 × 50 to 510 × 510 mm.
- PCB thickness: 0.4 to 6 mm.
- Maximum PCB weight: 5 kg.
- PCB margin: 3 mm.
- Stencil frame size: 470 × 370 to 737 × 737 mm.
- Stencil frame thickness: 12 to 43 mm.
- Number of squeegee heads: 2.
- Squeegee contact pressure: 0.5–10 kg.
- Print speed: 10–200 mm/s.
- Print accuracy: ±18 µm.
- Cycle time: < 8.5 s, excluding printing and cleaning.
- Machine dimensions (L × W × H): 1,240 × 1,560 × 1,491 mm.
- Machine weight: 1,200 kg.
- Power supply: 220 V ±10%, 50/60 Hz AC.
- Compressed air: 6 bar. Juki Screen Printing Overview
