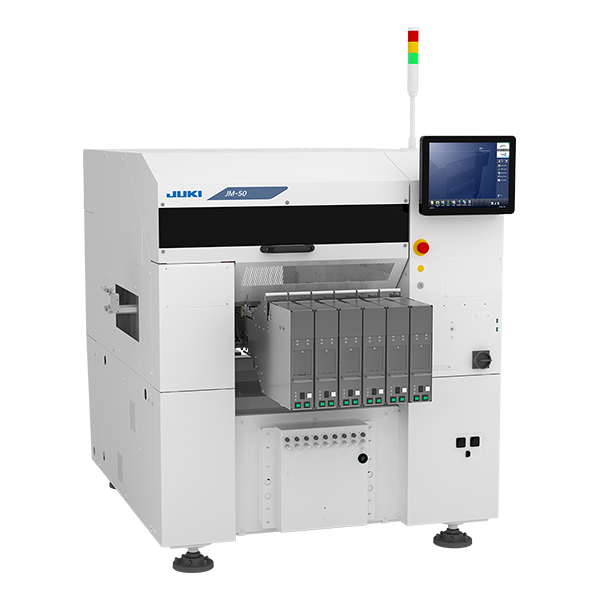

Automatic Component Insertion Machine
JM-50
Product Description
The JUKI JM-50 is an automatic component insertion machine designed for reliable and cost-effective PCB assembly. Ideal for small-batch production, it automates the insertion of through-hole and other leaded components while reducing manual handling and operator-dependent variations. Its flexible feeding options and component recognition technology help manufacturers maintain consistent insertion quality across different production requirements.
Key Features
- Automatic component insertion for small-batch PCB assembly.
- Cost-effective entry-level model for production automation.
- Supports a wide range of leaded and through-hole components.
- Handles components up to 50 × 50 mm.
- Accommodates component heights up to 30 mm.
- Laser recognition for accurate component positioning.
- Multiple feeder options for different component packaging formats.
- Takumi head supports components with different heights.
- Reduces manual insertion errors and operator workload.
- Supports single and double-clamping PCB configurations.
Technical Specification
- Maximum component size: 50 × 50 mm (laser recognition).
- Maximum component height: 30 mm.
- PCB size, single clamping: 50 × 50 to 410 × 360 mm.
- PCB size, double clamping: 50 × 50 to 800 × 360 mm.
- PCB weight: Up to 4 kg.
- Insertion speed: 0.6 sec/component (vacuum nozzle); 0.8 sec/component (gripper nozzle), under specified conditions.
- Placement accuracy: ±0.02 mm (3σ), laser recognition.
- Power supply: 3-phase AC 200–415 V.
- Machine dimensions (W × D × H): 1,454 × 1,505 × 1,450 mm.
