Automatic Component Insertion and Screw Tightening Machine
JM-E01
Product Description

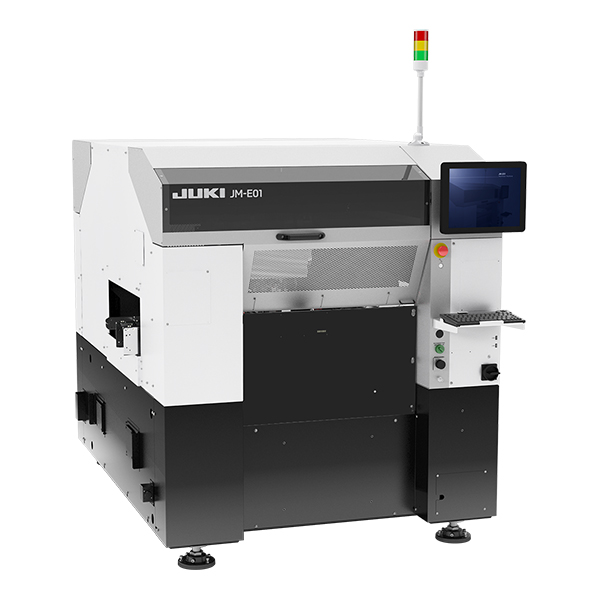

The JUKI JM-E01 combines automatic component insertion and screw tightening in a single PCB assembly platform. Designed for large and irregular components, it supports automated fastening operations without requiring the board to be turned over. By integrating both processes, the system reduces manual handling, helps prevent component misalignment and simplifies complex electronic assembly operations.
Key Features
- Combines automatic component insertion and screw tightening.
- Supports large and odd-form components up to 150 mm in external dimensions.
- Handles components up to 90 mm in height.
- Screw tightening from underneath the PCB.
- Eliminates the need to turn the PCB over during fastening.
- Helps prevent scratches and component misalignment.
- Optional torque checking for screw tightening quality control.
- Supports automated multi-process PCB assembly.
- Flexible handling of connectors and stick-fed components.
- Reduces manual assembly steps and board handling.
Technical Specification
- Maximum component size: 150 mm external dimension, subject to recognition configuration.
- Maximum component height: 90 mm, subject to component body and lead dimensions.
- PCB size, single clamping: 50 × 50 to 410 × 360 mm.
- PCB size, double clamping: 50 × 50 to 800 × 360 mm.
- PCB weight: 5 kg standard; 10 kg optional.
- Applicable screw size: M4 (contact JUKI for details).
- Screw supply method: Force-feed type.
- Screw tightening: From underneath the PCB.
- Torque checking: Optional.
- Machine dimensions (W × D × H): 1,500 × 1,930 × 1,600 mm.
- Machine weight: Approximately 2,000 kg.
